Key Features
Designed for:
- Eminere Remote (SC & MC)
- Calumma XS (SC & MC)
- Calumma Remote S (SC & MC)
- Calumma Remote M (SC & MC)
- Lyrae XS & XS Fix (SC & MC)
- Agame
- Eminere Remote (SC & MC)
- Calumma XS (SC & MC)
- Calumma Remote S (SC & MC)
- Calumma Remote M (SC & MC)
- Lyrae XS & XS Fix (SC & MC)
- Agame
Control Protocol
For E-Box Remote: DMX/RDM - (Optional Wireless), Stand-alone, Kling-net, ArtNet, MAnet, MAnet2, sACN
For E-Box Remote Basic & Basic Mini: DMX/RDM
For E-Box Remote Basic & Basic Mini: DMX/RDM
Input Voltage (power consumption)
120-277 V AC 5/60Hz (5W+Load)
Physical

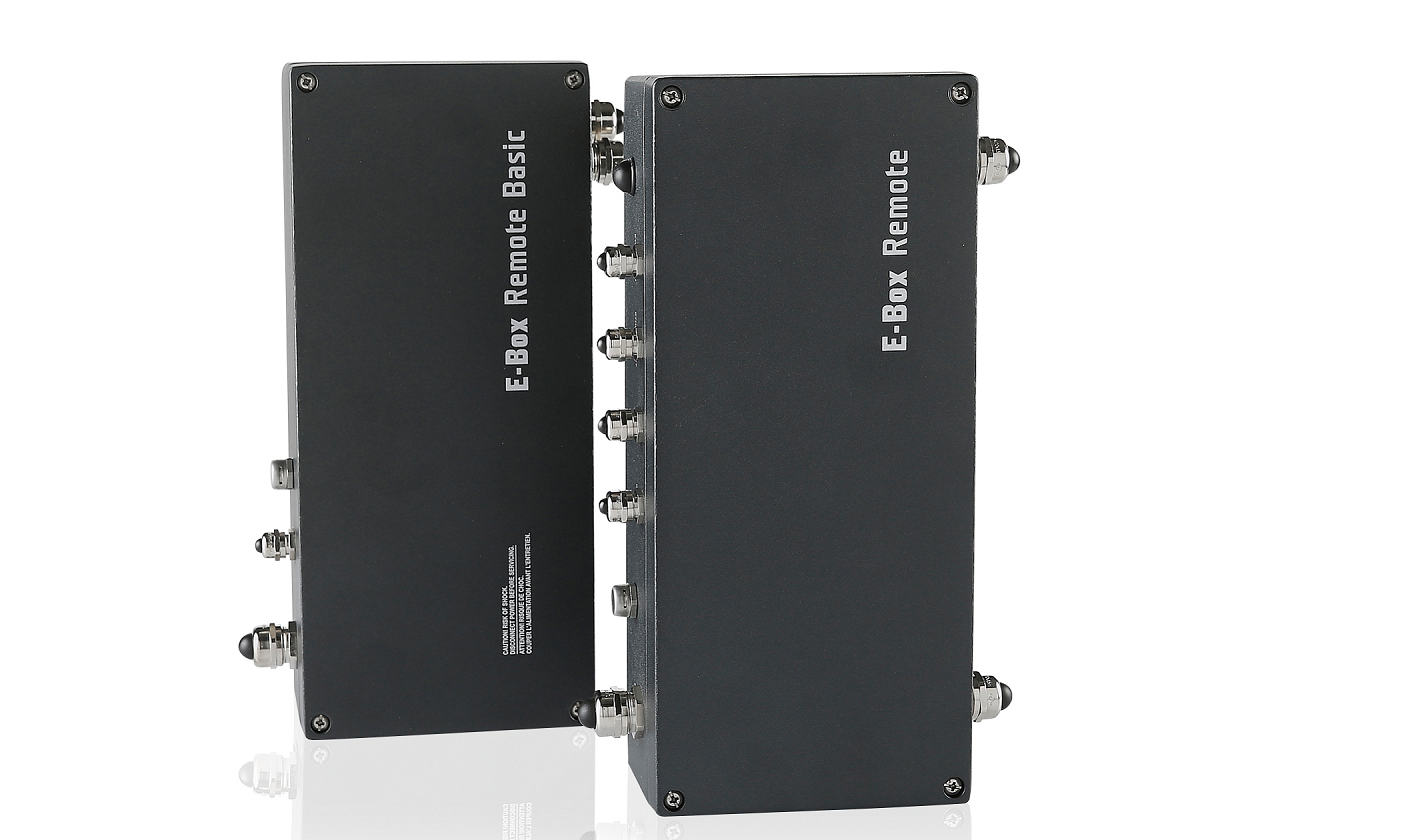

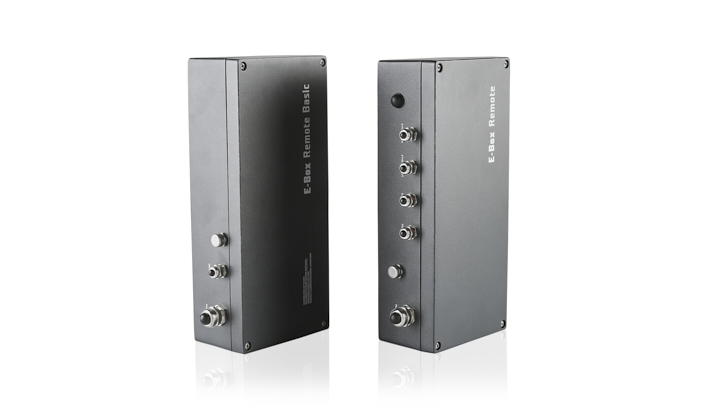

E-Box Remote & Remote Basic
360 x 210 x 91 mm (5kg)
14.17 x 8.27 x 3.58 in. (11.02lbs)
IK10, IP65
E-Box Remote Basic Mini
371 x 100 x 81 mm (2.66 kg)
14.61 x 3.9 x 3.2 in. (5.9 lbs)
IK09, IP66
360 x 210 x 91 mm (5kg)
14.17 x 8.27 x 3.58 in. (11.02lbs)
IK10, IP65
E-Box Remote Basic Mini
371 x 100 x 81 mm (2.66 kg)
14.61 x 3.9 x 3.2 in. (5.9 lbs)
IK09, IP66
Standard Product Versions
E-Box Remote
E-Box Remote Basic
E-Box Remote Basic Mini
Control Protocols / Options
Kling-net
MA Net
MA Net2
sACN
DMX+RDM
ArtNet
Wireless - Option
Finish / Options
RAL 9006 / Silver
RAL 9011 / Graphite Black
Custom Paint Colour Option
Harsh Environment Option
Standards & Certification
European CE
ETL
UKCA
RoHS
IK09
IK10
IP66
IP65
2 Years
5 Years (Registered)
Vibration IEC60598-1 / 3GANSIC136.31
