Anolis ArcSource™ Submersible II ArcSource™ Submersible II

Lighting does not have to be limited to the open air with this submersible fixture from Anolis. The ArcSource™ Submersible II has been crafted from the highest quality marine grade bronze to cope with the very harshest environmental conditions. An IP68 rating guarantees the unit to a depth of 10m whilst the multiple LED colour arrays allow for stunning lighting projects in both fresh and salt water applications.

Key Features

Fully submersible, solid bronze housing with all the features of the multichip outdoor family.
Lumen Output & Light Source
Max. 2,235 lm
6 x Multichip
Projected Lumen Maintenance
L90B10 >90.000 hrs, Ta = 25°C / 77°F
Power Consumption
Typ. 100W
Physical (max WxHxD)
216 x 261 x 170 mm - 9.5kg
8.5 x 10.28 x 6.69in. - 20.9lbs
Marine Bronze Body, Tempered Glass
3dspin
submersible
front submersible

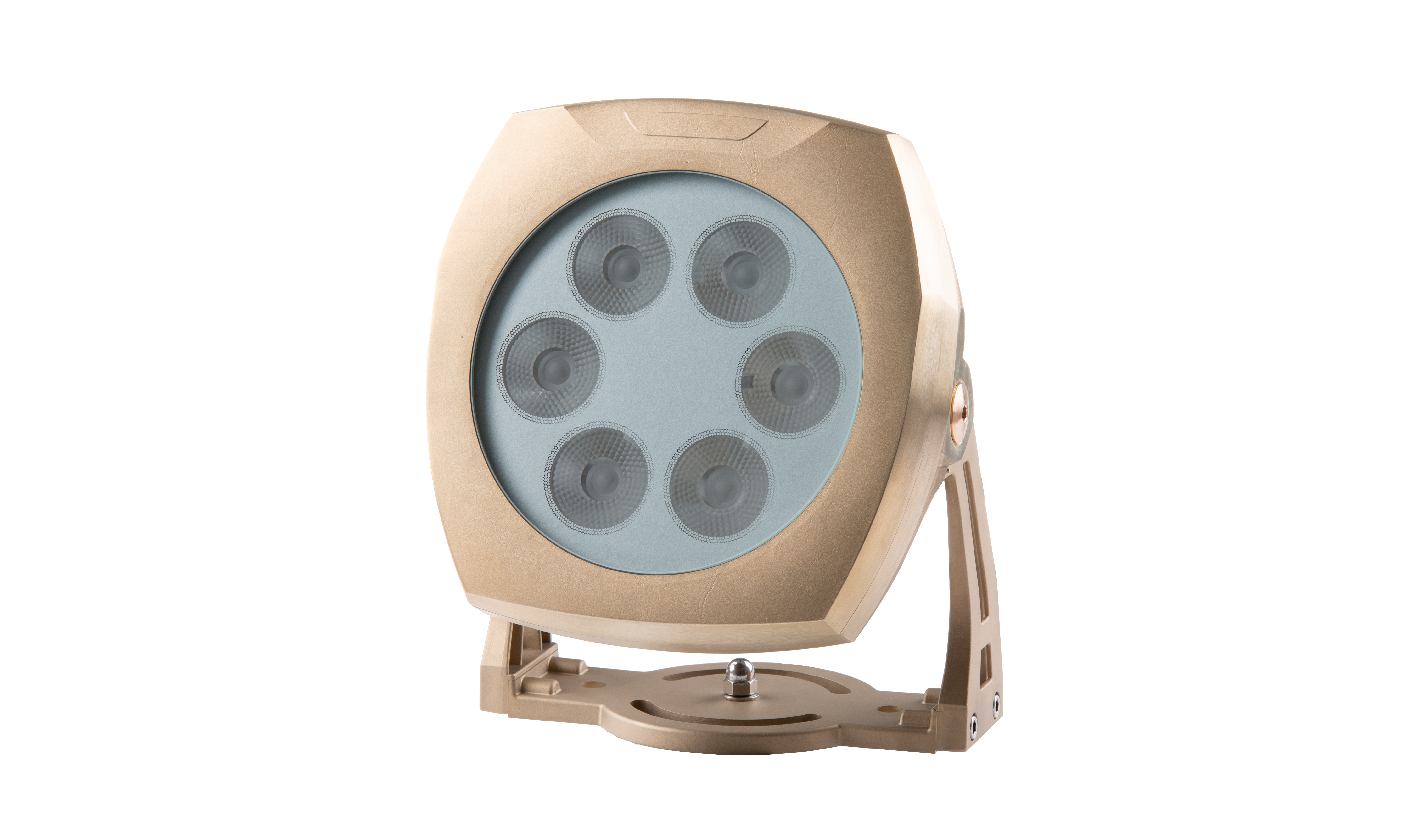

AS submersible II - side
Wall
ArcSource Submersible II with Floor Stand
Photograph shows optional floor stand. + Zoom
ArcSource Submersible II with Floor Stand + Zoom

Standard Product Versions

RGBW (W - 6500K)
RGBA
PureWhite (3000K)

Optic Options

7º, 13º, 20º, 30º, 40º, 60º, 90º
7ºx30º, 7ºx60º, 35x70º, 10x90º

Control Protocols / Options

SUB Drive

Finish / Options

Marine Bronze

Standards & Certification

ETL
UKCA
RoHS
IK10
IP68
2 Years
5 Years (Registered)
European CE

Key Resources

Specification Sheets & Certifications

ArcSource Submersible II Specification sheet v5.2 April 2023 Download
SubDrive 1 Specification Sheet v1.4 August 2022 Download

Installation Instructions

SubDrive 4 Installation Instructions v2 February 2023 Download
ArcSource Submersible II Installation Instructions v2 February 2023 Download
SubDrive 1 Installation Instructions v2 February 2023 Download

CAD Files

ArcSource Submersible II 3D CAD set February 2021 Download
ArcSource Submersible II 2D CAD set March 2021 Download
ArcSource Submersible II Accessories 2D CAD set March 2021 Download

Photometrics (IES & LDT)

ArcSource Submersible II LDT file set August 2022 Download
ArcSource Submersible II IES file set August 2022 Download

User Manuals

SubDrive 1 User manual v1.5 May 2022 Download
SubDrive 4 User manual v1.5 May 2022 Download
ArcSource Submersible II User manual v1.9 October 2022 Download
