Key Features
Lumen output & Light source
LEDs provides up to 3478 lumen output (@RGBW).
Multiple LED colour variants.
Perfectly homogenised light output with efficacy up to 57 lm/w.
Multiple LED colour variants.
Perfectly homogenised light output with efficacy up to 57 lm/w.
Design & Durability
Die cast aluminium body.
IP67 (fixture) / IP65 (tube) and IK10
5 year warranty (registered).
IP67 (fixture) / IP65 (tube) and IK10
5 year warranty (registered).
Flexibility
Indoor and outdoor LED luminaire.
Offers three interchangeable lense and eleven textured glass options.
Optical components can be replaced on site.
Lighting effects can be adjusted during installation.
Allows multiple beam and distribution configurations.
Offers three interchangeable lense and eleven textured glass options.
Optical components can be replaced on site.
Lighting effects can be adjusted during installation.
Allows multiple beam and distribution configurations.
Connectivity
Interface protocols DMX/RDM or DALI2.
Possibility of control via E-Box range.
(Junction box not included - Optional Accessories)
Possibility of control via E-Box range.
(Junction box not included - Optional Accessories)
Standard Product Versions
RGBW (6500K)
RGBA
PureWhite (3000K)
TW (2200-3000K)
Special Order Options - White Colour Temperature
RED (Upon Request)
GREEN (Upon Request)
BLUE (Upon Request)
AMBER (Upon Request)
2200K (Upon Request)
2700K (Upon Request)
3000K (Upon Request)
4000K (Upon Request)
6500K (Upon Request)
Optic Options
10°, No Optics
Lenses

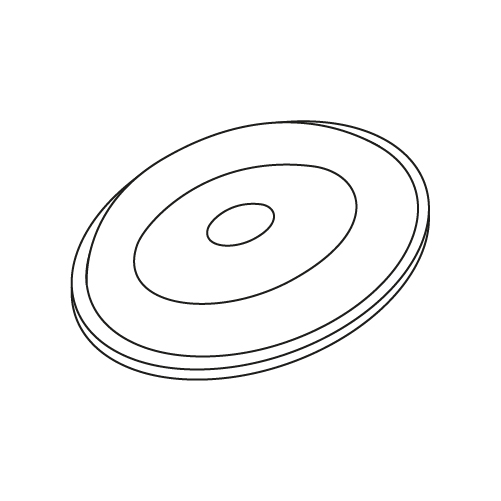

ARC Lens

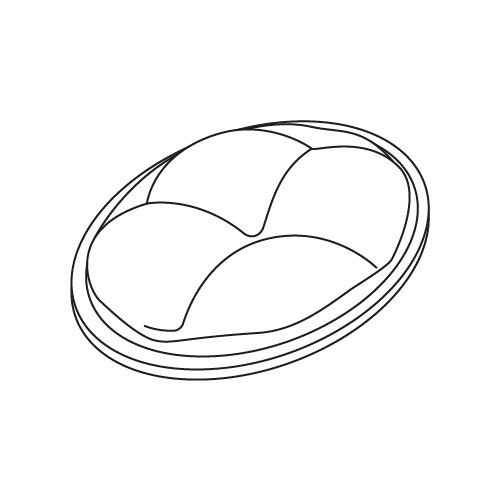

Fractal Lens

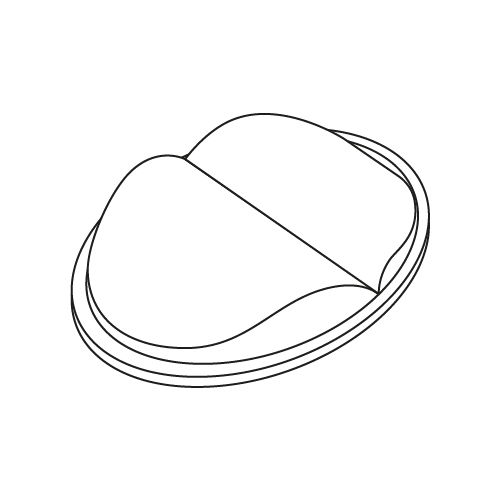

Line Lens

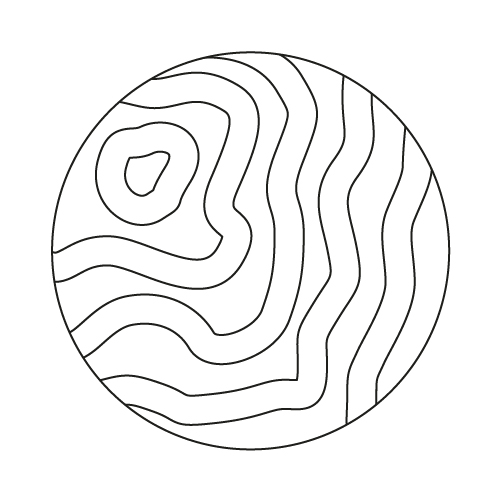

Textured glass
Hammered
Diamond
Matrix
Cube

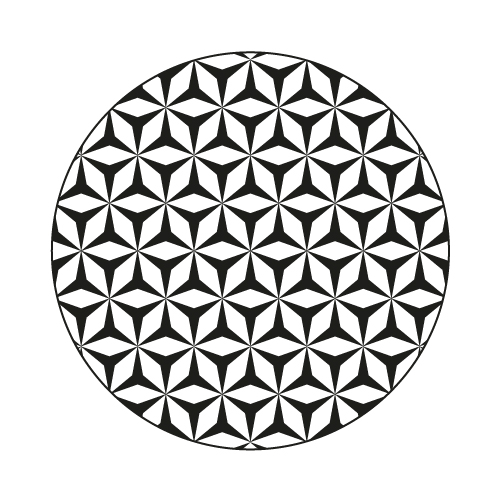

DewDrop

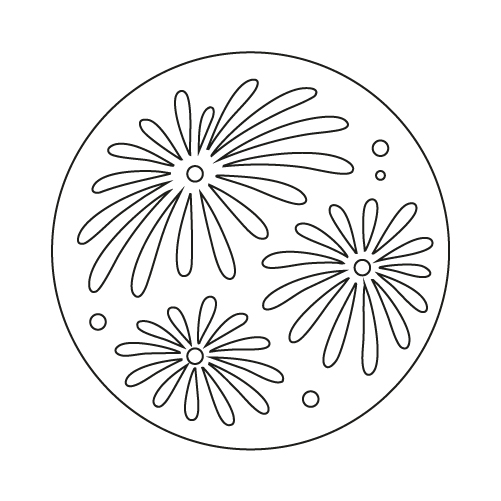

Florentine

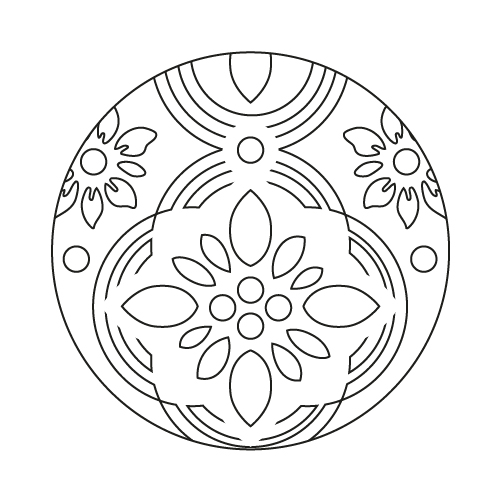

Cathedral

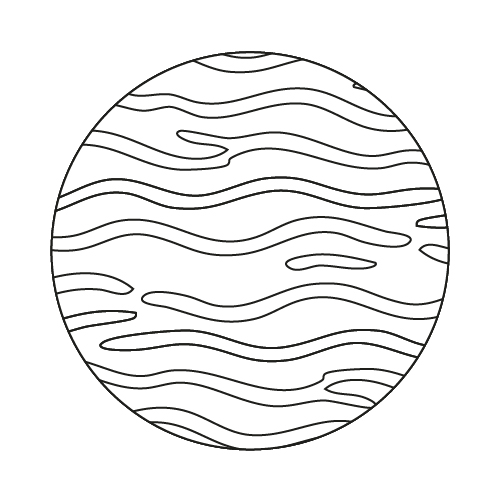

Ripple
Stream

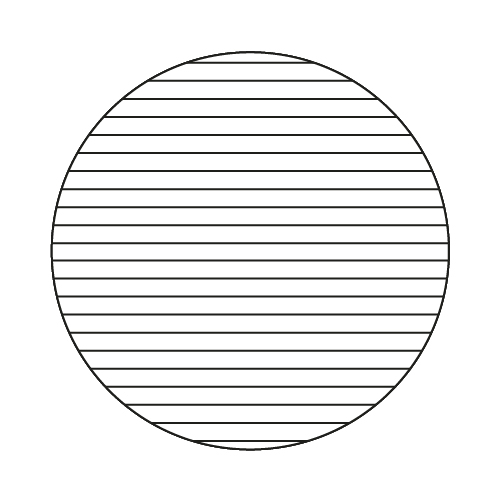

Aerolite

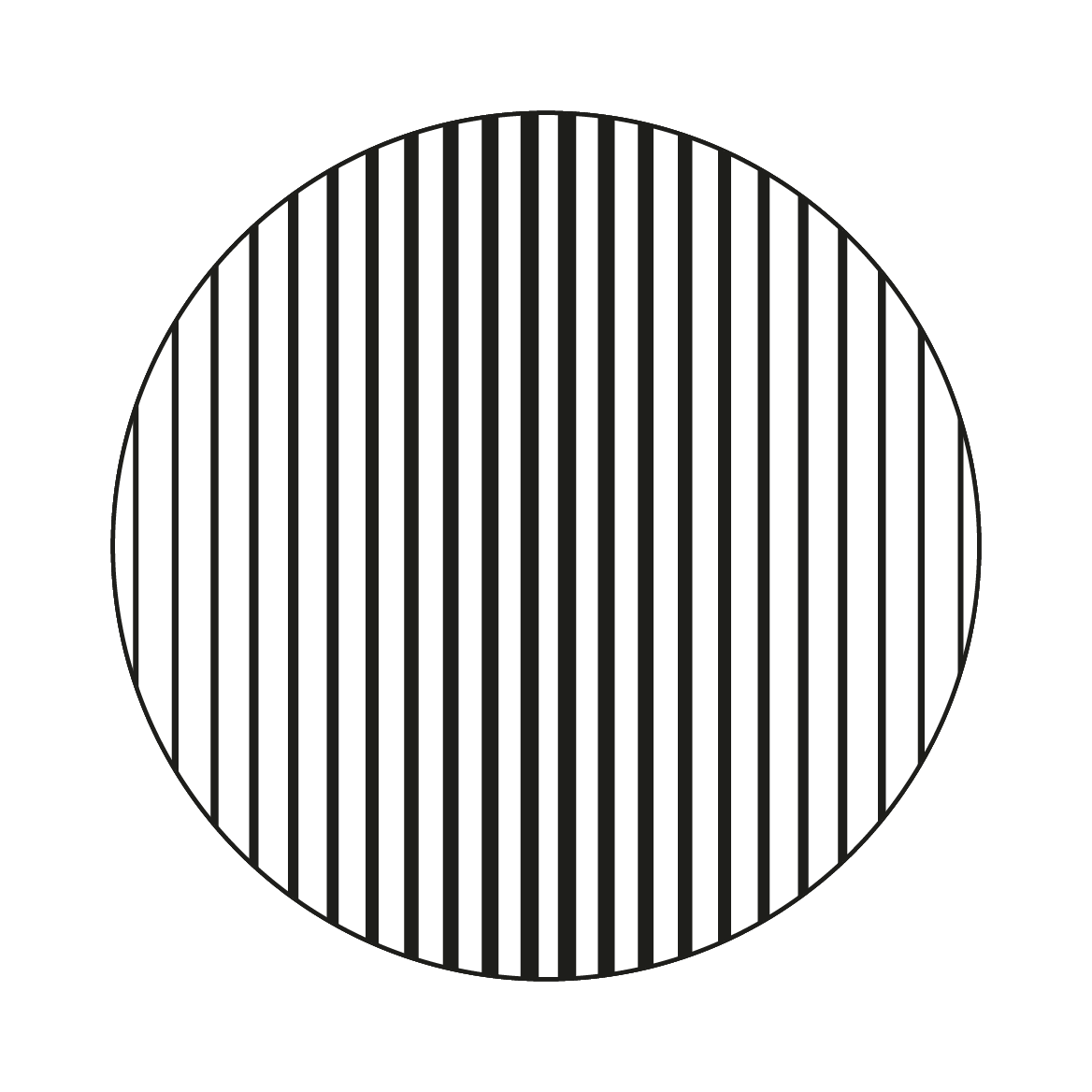

Flutes

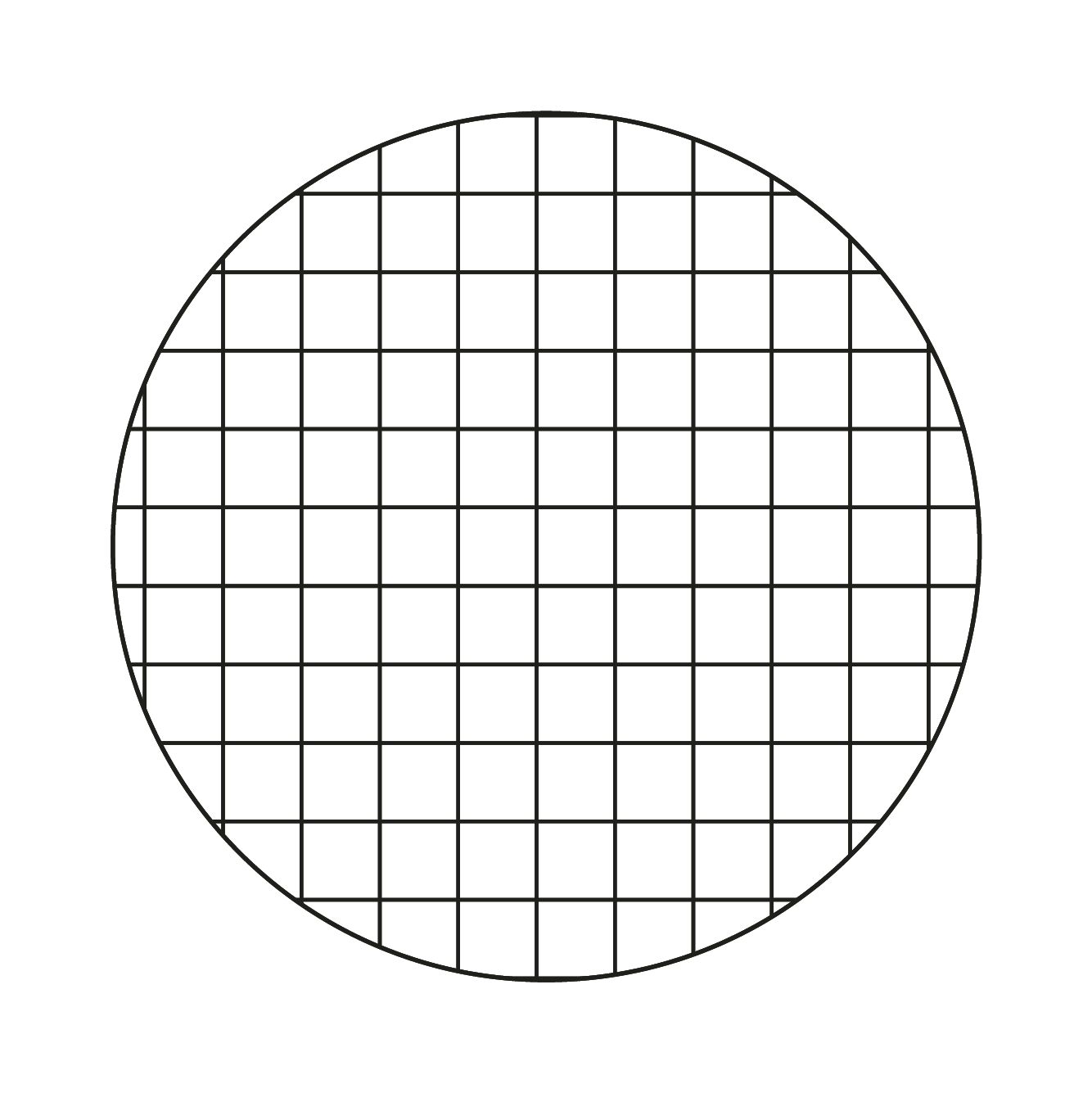

Listral
Control Protocols / Options
Finish / Options
Graphite Black RAL 9011
Grey Aluminium RAL 9007
Pure White RAL 9010
Sandstone RAL 1014
Graphite Black RAL 9011 - Harsh Environment
Grey Aluminium RAL 9007 - Harsh Environment
Pure White RAL 9010 - Harsh Environment
Sandstone RAL 1014 - Harsh Environment
Custom Paint Colour Option
Standards & Certification
UKCA
RoHS
IK10
IP65 (Tube)
IP67
5 Years (Registered)
European CE
Vibration IEC60598-1 / 3GANSIC136.31
ETL
Key Resources
Specification Sheets & Certifications
Accessories
