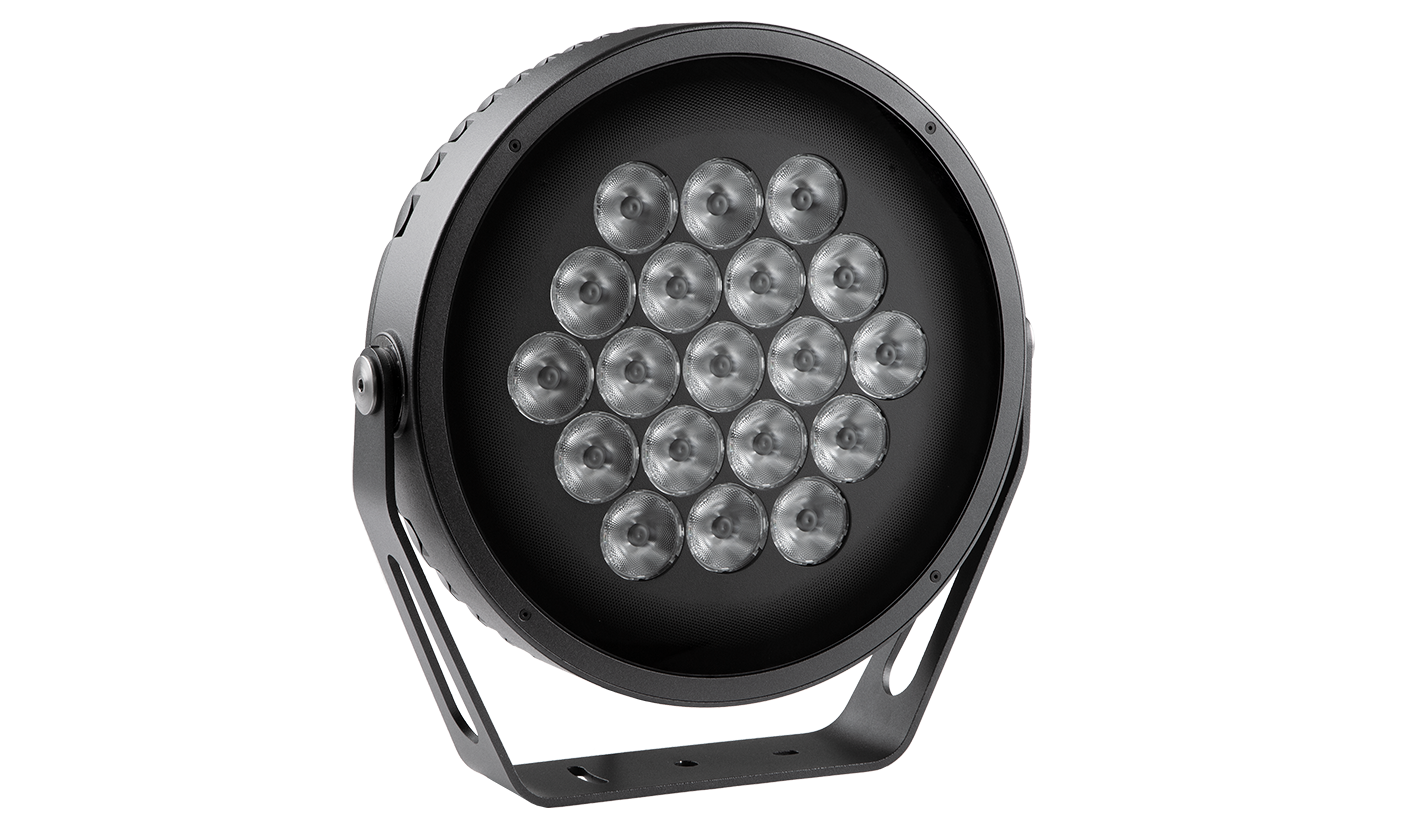

Anolis Calumma™ XL MC Calumma™ XL MC

Featuring an optical design using nineteen high efficacy multichip LEDs and available with optional LED colour variants and various beam angles, the extra large-sized Calumma XL MC luminaire creates powerful and beautiful light output for a spot, accent or flood lighting solution. Its durable housing is built to withstand any exterior conditions, and its special finish for harsh and marine environments provides an exceptional outdoor LED luminaire in an elegant design.Additionally, Calumma XL MC can be connected in long In/Out daisy-chains via an E-Box and hybrid Plug & Play connections for almost effortless installation. Complemented by wide range of accessories and control protocols, this luminaire is an effective and versatile unit to get the most out of architectural lighting applications.

Key Features

Lumen output & Light source
Multi-chip LEDs provides up to 6286 lumen output (@RGBW).
Multiple LED colour variants.
No light spills.
Perfectly homogenised light output with efficacy up to 36 lm/w.
Design & Durability
Die cast aluminium body.
IP67 and IK10
5 year warranty (registered).
Interface protocols DMX/RDM or DALI2.
Possibility of control via E-Box range.
(Junction box not included - Optional Accessories)
Projected Lumen Maintenance
L90B10 >90.000 hrs, Ta = 25°C / 77°F

Standard Product Versions

RGBW (W - 6500K)
PureWhite (3000K)
Tuneable White (Upon Request)

Special Order Options - White Colour Temperature

3000-6500K (Upon Request)

Optic Options

10°x30°, 10°x60°, 15°x45°, 15°x90°, 30°x60°, 30°x90°
9°, 15°, 25°, 30°, 45°, 65°, 100°

Control Protocols / Options

Wireless - Option

Finish / Options

RAL 9006 / Silver
RAL 9011 / Graphite Black
Custom Paint Colour Option
Harsh Environment Option

Standards & Certification

5 Years (Registered)
Vibration IEC60598-1 / 3GANSIC136.31
European CE


Pole Adaptor (ø 102mm) (Order Separately)
Floor stand Calumma L/XL (Order Separately)
Half Top Hat Calumma XL (Order Separately)
Junction Box Calumma S-XL (Order Separately)
Optical Demo Set Calumma XL (Order Separately)
Top Hat Calumma XL (Order Separately)

Product Configurator

Your Product Code
