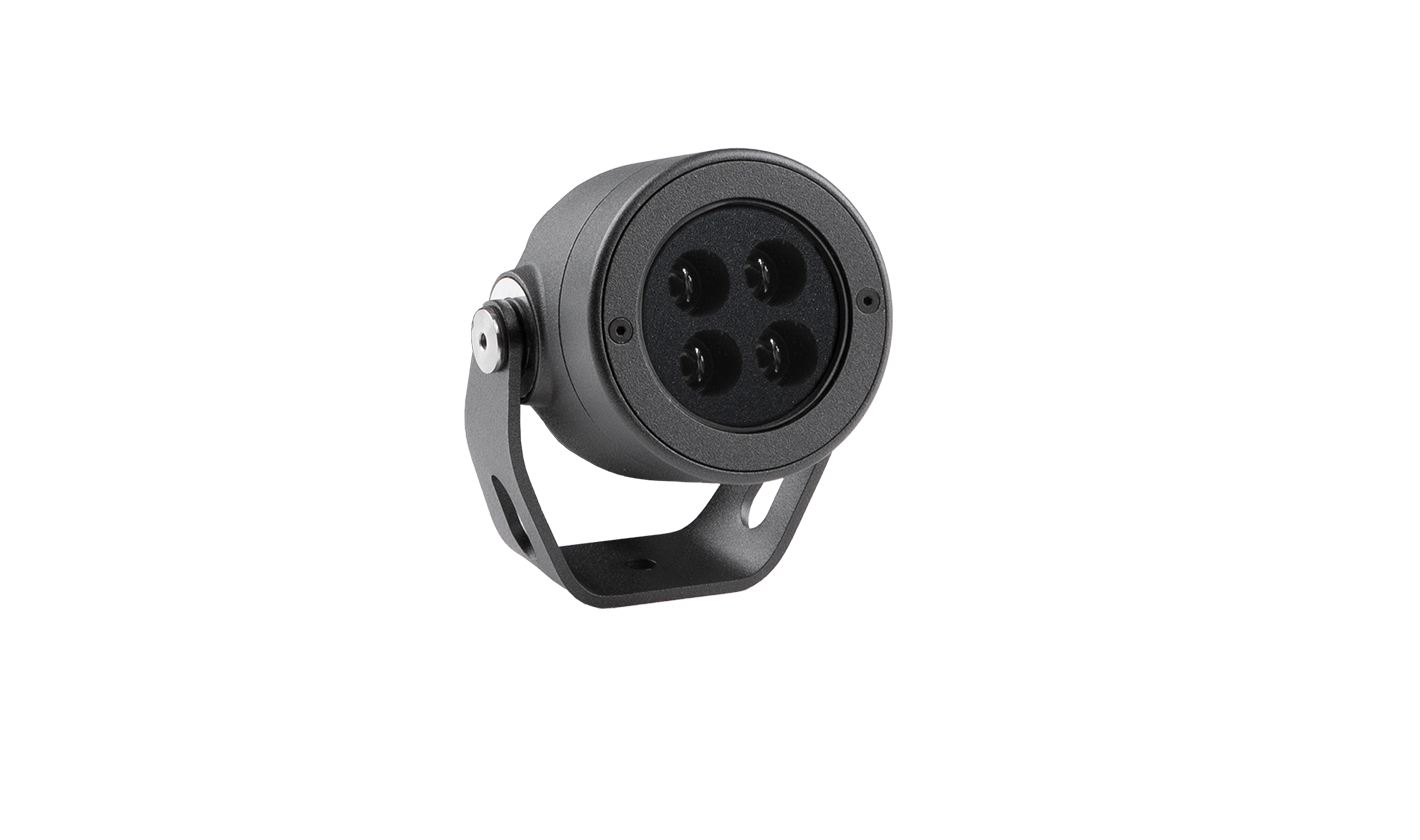

Anolis Calumma™ XS SC Calumma™ XS SC

Using a four high-power, single-chip LED inside a compact, elegant, and durable housing, the smallest Calumma is a great choice for many different lighting applications. Complementing both outdoor environments and interior designs, its wide range of beam angles, LED chip white variant options and accessories make the Calumma XS SC an ideal, extra small lighting solution for any architectural design.

Key Features

Lumen output & Light source
LEDs provides up to 457 lm output (@10°, PW 3000K).
Multiple LED colour variants.
No light spills.
Well homogenised light output.
Design & Durability
Lightweight, compact and durable housing.
High-pressure die cast aluminium.
IP67 and IK10
Supported with a 5 year warranty.
Projected Lumen Maintenance
L90B10 >90.000 hrs, Ta = 25°C / 77°F

Standard Product Versions

PureWhite (W)options
Tuneable White (Upon Request)

Special Order Options - White Colour Temperature

2200K (Upon Request)
2500K (Upon Request)
2700K (Upon Request)
3000K
3500K (Upon Request)
4000K (Upon Request)
5000K (Upon Request)
6500K (Upon Request)
2700-6500K (Upon Request)

Optic Options

10°, 15°, 25°, 30°, 45°, 65°, 100°
10°x30°, 10°x60°, 15°x45°, 15°x90°, 30°x60°, 30°x90°

Control Protocols / Options

On / Off (PW & Single Color Only)

Finish / Options

RAL 9006 / Silver
RAL 9011 / Graphite Black
Custom Paint Colour Option
Harsh Environment Option

Standards & Certification

European CE
ETL
UKCA
RoHS

Accessories

Pole Adaptor (ø 102mm) (Order Separately)
Half Top Hat Calumma XS (Order Separately)
Junction Box Calumma XS (1x output) (Order Separately)
Junction Box Calumma XS (4x output) (Order Separately)
Optical Demo Set Calumma XS (Order Separately)
Top Hat Calumma XS (Order Separately)
Twin Wall Cover Calumma XS (Order Separately)
